VERTICAL TURBINE FIRE PUMP

Vertical shaft turbine type fire pumps have submerged impellers contained in a series – bowl assembly
at the bottom of a vertical shaft. The design is similar to the pumps used extensively for industrial &
municipal services. These pumps are UL approved for discharging water from tanks, streams, open sumps,

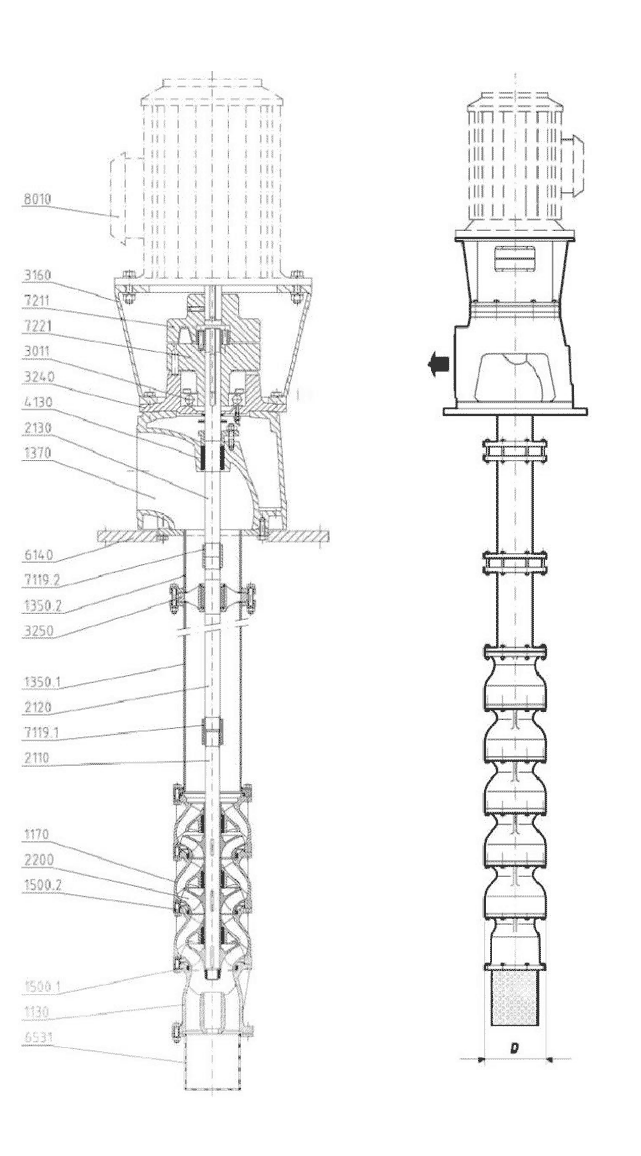

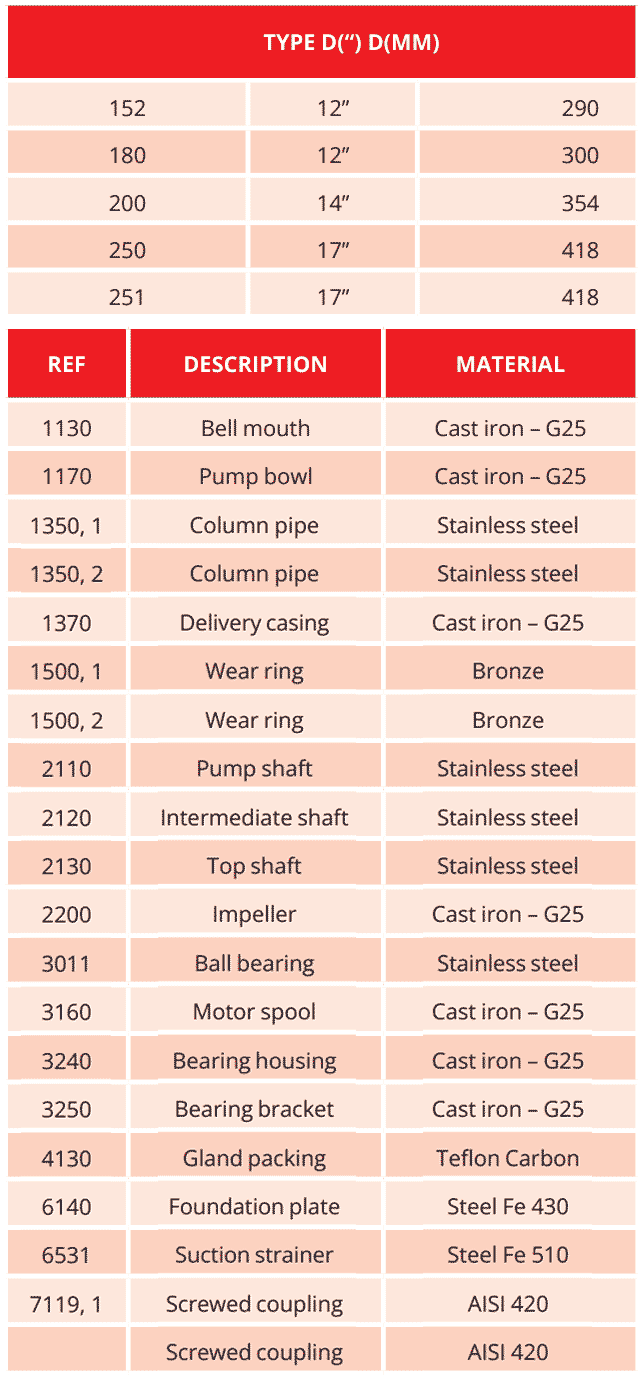

drilled wells. Each pumps consist of a discharge head, motor stand, column pipe, line shaft, bowl
assembly and suction strainer.

• Stuffing box machined with bushing to guide shaft
• Discharge head provides support for motor and entire pump
• Column connections can be flanged or threaded with coupling
• Bearings available in a variety of materials
• Line shaft couplings machined from solid steel stock
• Column assembly manufactures in-plant to ensure accurate fit
• Sleeve bearings to provide long life and low friction
