CENTRAL MONITORING SYSTEM

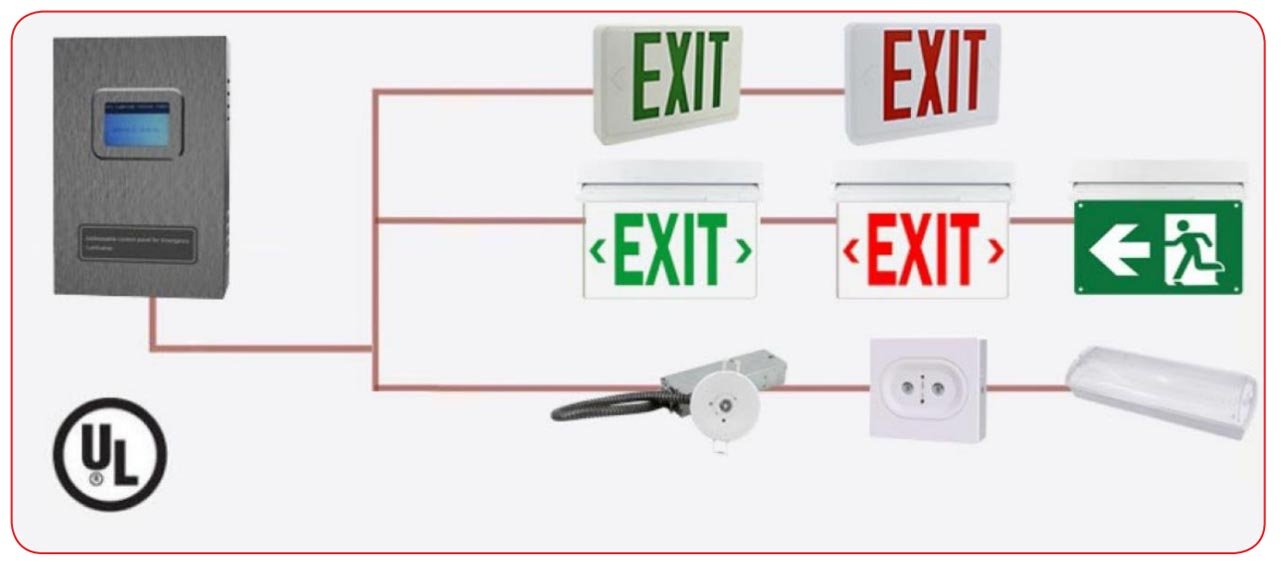

The system adopts one core (two-wire), using the power supply wire for digital communication at same time,
it is cost saving and easy to install. Each control panel support up to 255 emergency fixture, with a maximum
distance of 1000 meters.

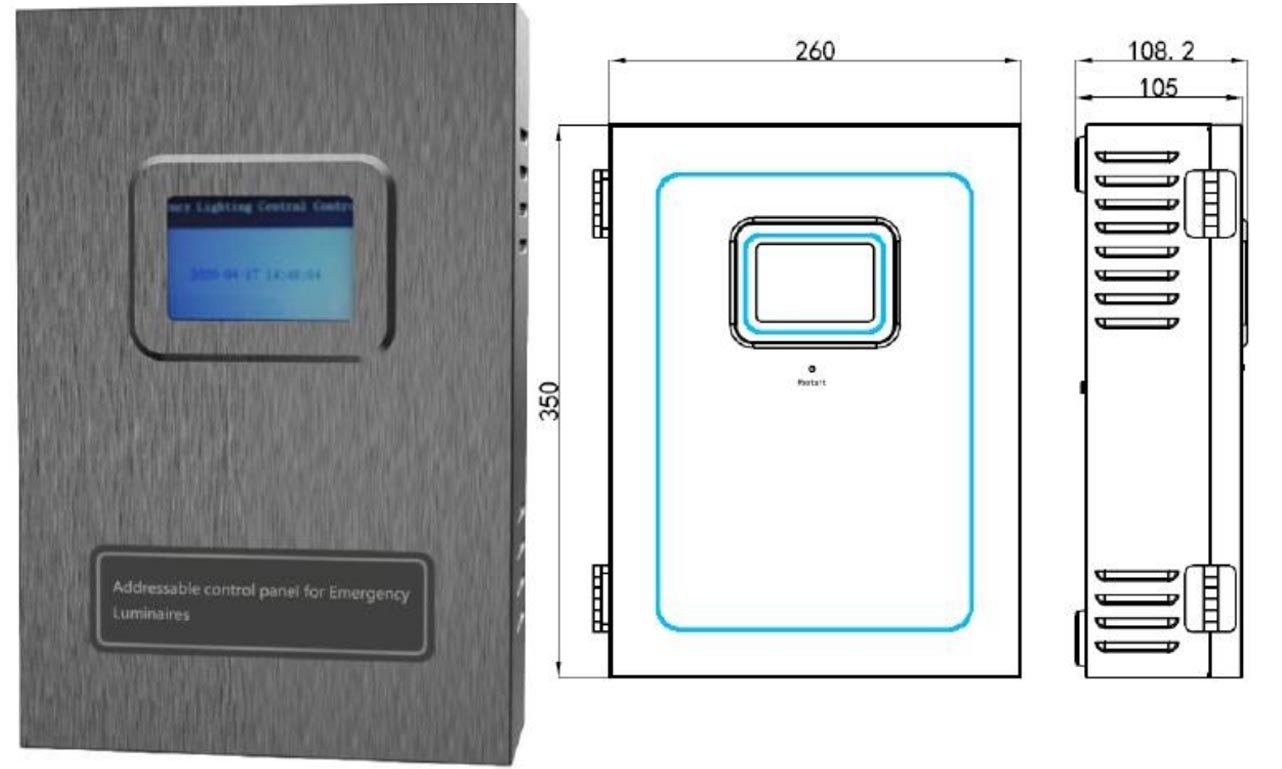

• Input Voltage : AC 100.120V/ 200.240V
• Output voltage : DC34.5V
• IP Level : IP20
• Operation Temp : 0.40°C
• Output current : Max 8A
• Output power : Maximum 276W
• Communication distance : Up to 1000 met
• Carrying Capacity : Maximum 255 device:
• No. of Lines : 2 lines
• Certificate : UL

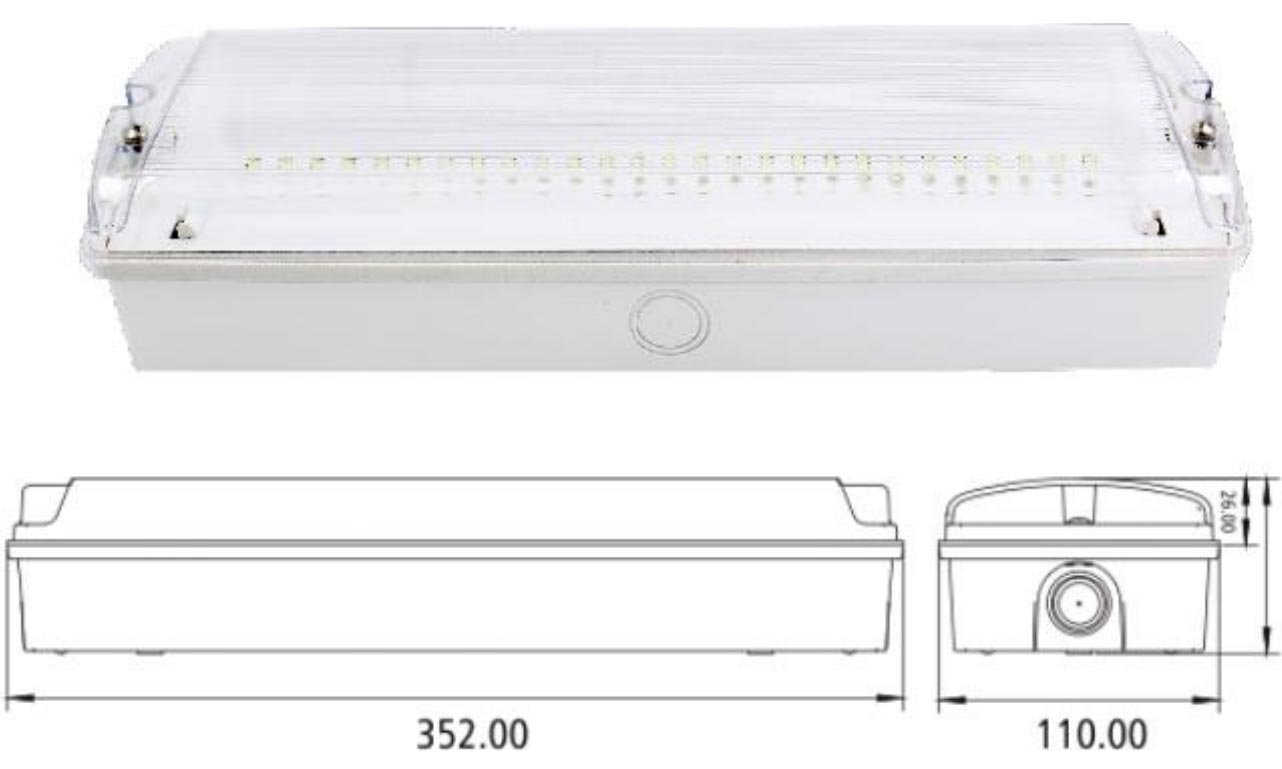

• Mounting Method : Surface/Recessed
• Input Voltage : DC36V(DCI5-40V)
• Light Source : SMD2835x27pcs
• CRI>80
• Lumen Output : 3001m
• IP Level : IP65
• Operation Model : Maintained/Non-
• Maintained
• Battery : LiFepo4 3.2V 3600mAh
• Battery Charge Time : 24H
• Emergency Time : 3H
• Recessed Kit (Optional)
• Certificate : UL

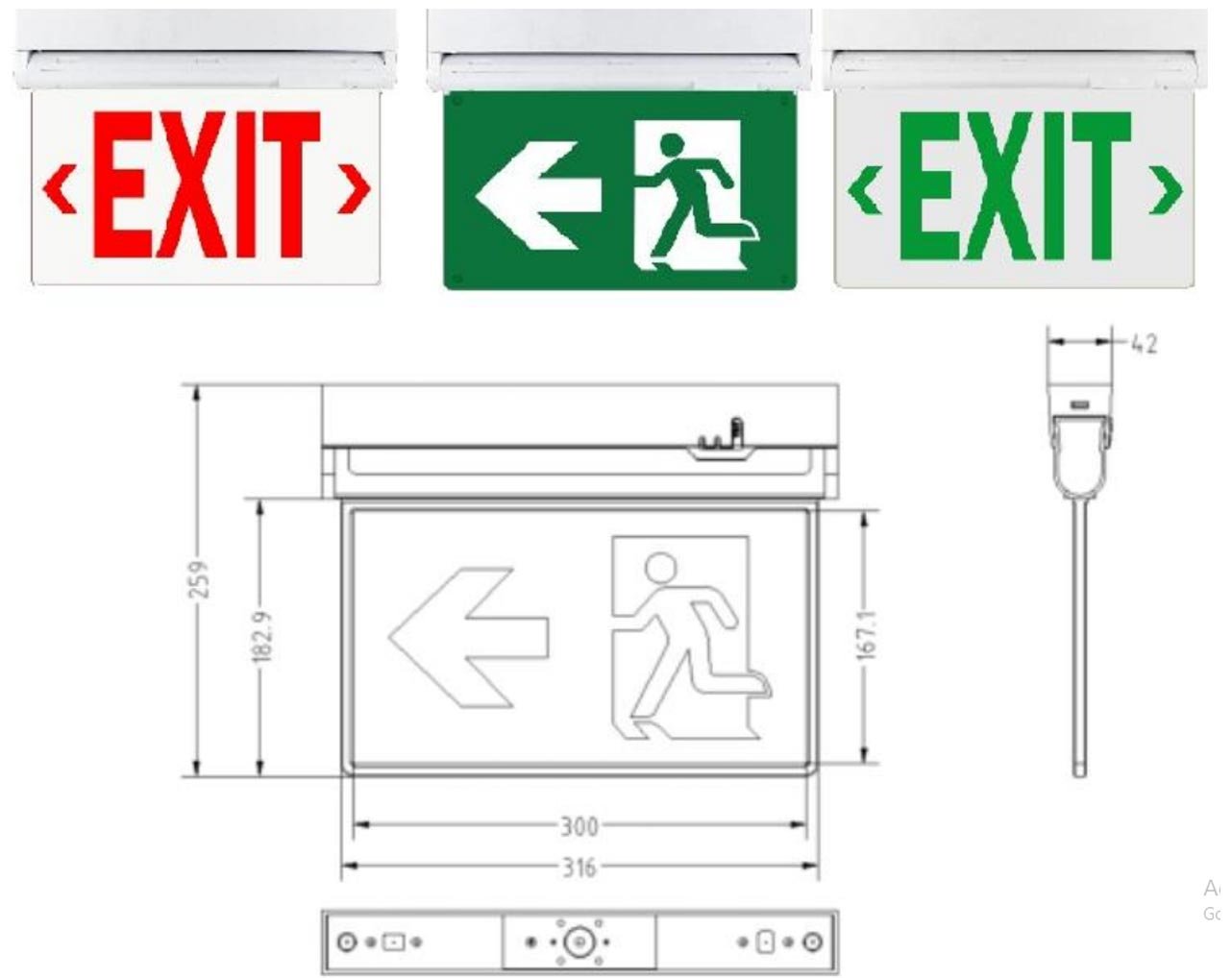

• Input Voltage : DC36V(DCIS-40V)
• CRI>80
• Mounting Method : Ceiling/Wall/Recessed/
• Suspend/End mount
• Battery Charge Time : 24H
• Emergency Time : 3H
• Operation Model : Maintained
• Viewing distance : 30M
• IP Level : 1P20
• Certificate : UL

• Input Voltage : DC36V(DC15-40V)
• Mounting Method : Ceiling/Wall/End mount
• Battery Charge Time : 24H
• Emergency Time : 3H
• Operation Model: Maintained
• Battery : Ni-Cd 1.2V 900mAh
• IP Level : IP20
• Certificate : UL

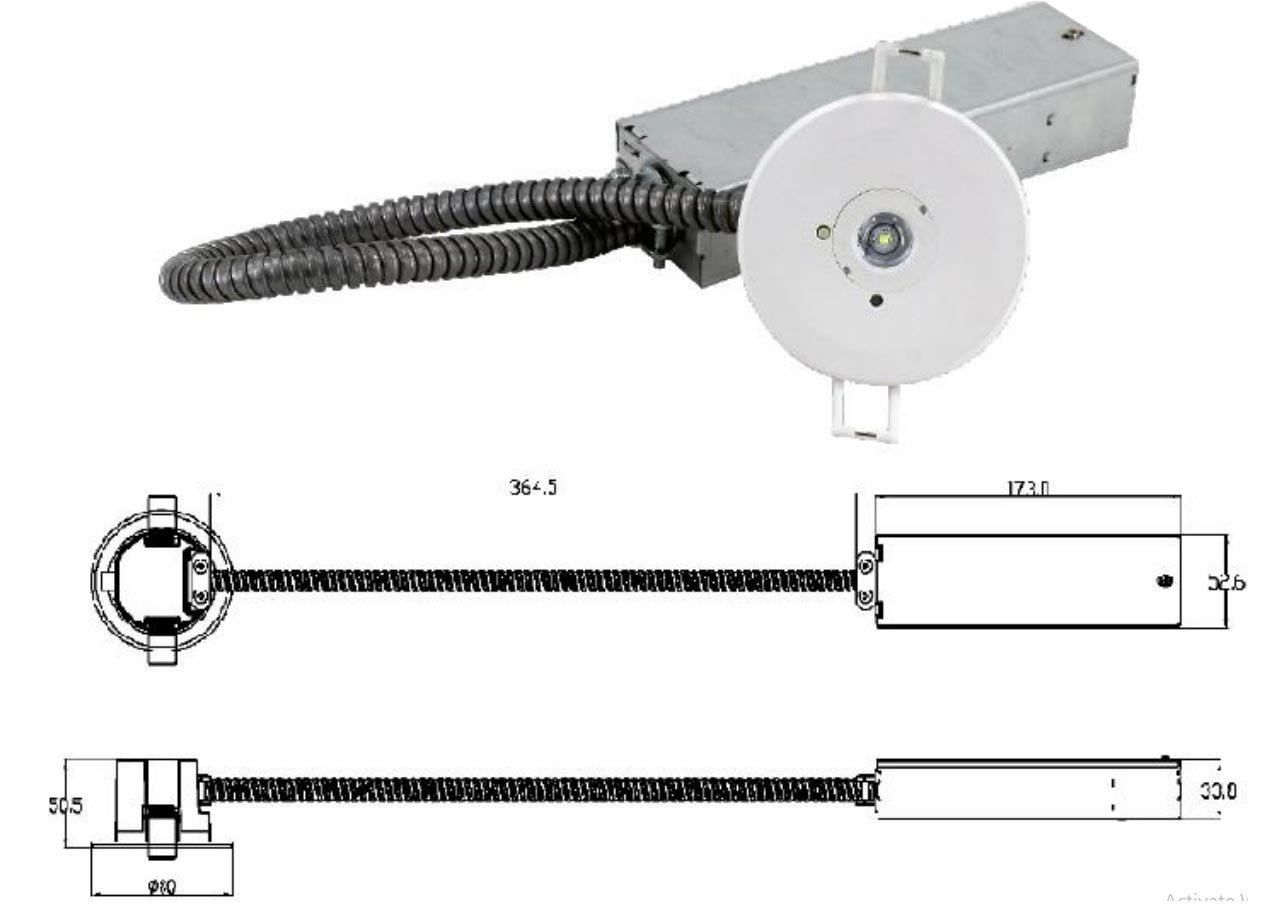

• Input Voltage : DC36V(DCI5-40V)
• Mounting Method : Recessed
• Light Source : SMD 3535 x 1pc
• CRI>70
• Lumen Output : 3001m
• Battery Charge Time : 24H
• Emergency Time : 3H
• Operation Model : Non-Maintained
• Battery : LiFePo4 3.2V 3600mAh
• IP Level : IP20
• Certificate : UL

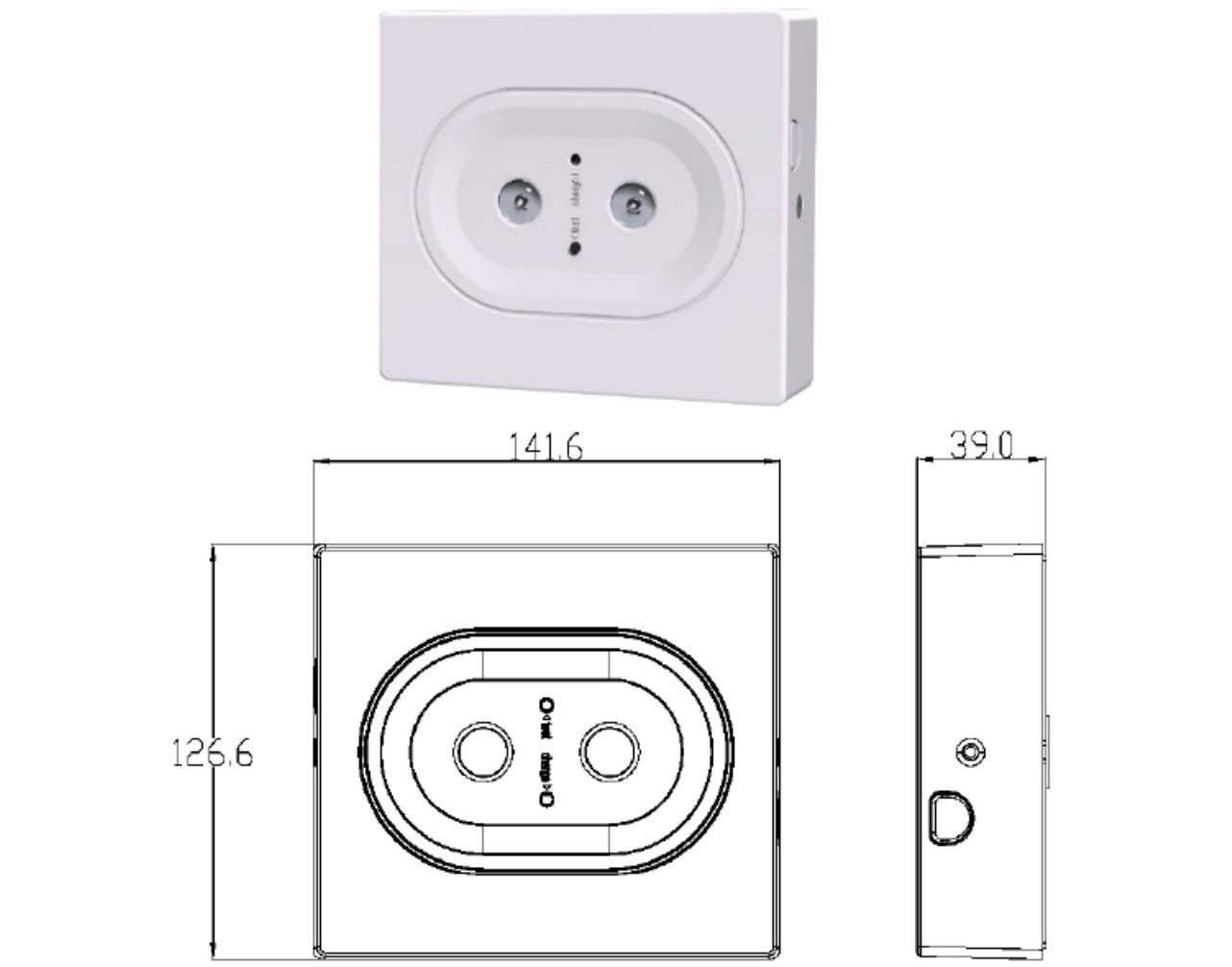

• Input Voltage : DC36V(DCI5-40V)
• Mounting Method : Surface
• Light Source : SMD 3535x1pc
• CRI >70
• Lumen Output : 3001m
• Battery Charge Time : 24H
• Emergency Time : 3H
• Operation Model : Non-Maintained
• Battery : LiFePo4 3.2V 3600mAh
• IP Level : IP20
• Certificate : UL
